生物資料庫 & 化合物管理 & 樣品管理
自動化的 生物樣品資料庫及化合物樣品管理資料庫 的高通量篩選已經是中型及大型研發計劃必備的研究方法.
生物樣品資料庫 :
是一種存儲用於研究的生物樣品(通常是人類)的生物儲存庫. 自從1990年代後期, 生物樣品資料庫已成為醫藥研究的一個重要資源,
支持多種類型的當代研究像基因體學以及個體化醫療.
BiobankAndCompoundManagement_FromWikipedia_中英對照_ABDC
化合物樣品管理 :
藥物發掘 依賴於測定許多不同的化學品的活性的各種方法.
這些化學品以物質數量被存儲於化學品儲存庫, 或則是被存儲於經常是從外部供應商和內部化學合成的努力兩者所組成的儲存庫.
這些化學品儲存庫被使用在 藥物發掘 的活性化合物(hit compound)到先導化合物(lead compound)的高通量篩選中.[1]
在大型製藥公司的化學品儲存庫是新藥發現過程的一個重要組成部分.
本地化, 專業化的實驗室自動化服務團隊
我們(ABDC) 在2013年開始與全球最先進的 樣品管理/液體處理/細胞影像 設備團隊,
http://ttplabtech.com/
以及在實驗耗材, 生化試劑, 各種實驗室自動化儀器等具有很好的產品經驗的本地優質企業,
漢鈞科技公司
http://www.hangene.com.tw/about.html , 進行技術及客戶服務的密切整合.
ABDC 具有密切完整的系統及週邊整合及客製化能力, 是科技先進大廠及先進實驗室,
建構全自動化的生產及品管最有幫助的技術及事業合作伙伴.
ABDC 位於全球前四大精密機械產業聚落(台中), 在系統架構, 機械設計加工, 控制軟體及軔體的研發,系統組裝測試等, 能夠有效實行研相關核心及必要技術.
自主研發項目包括,
1. 通用型層析儀訊號接收運算系統(可很靈活的搭配 LIMS系統)
2. 生命起源胺基酸反應器,
3. 紫外光及可見光通用型小光譜儀,
4. 自動酸鹼滴定儀系統等,
各研發項目均為自主技術介紹(詳見:相關研發實績及技術經驗 )

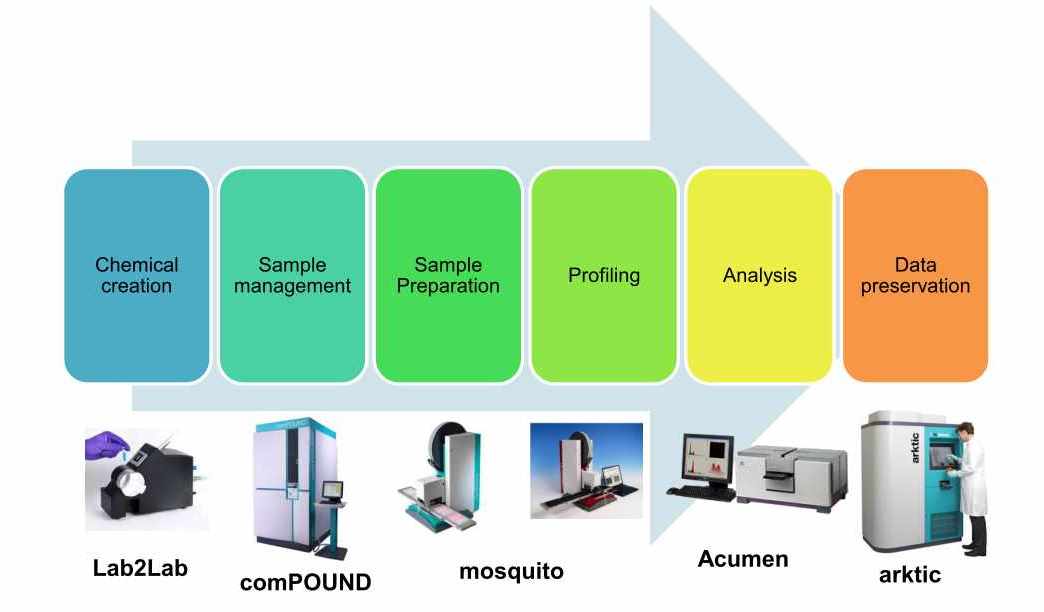

Sample Management Solutions for the Laboratory of The
Future
未來實驗室的樣品管理解決方案
http://ttplabtech.com/sample-management/

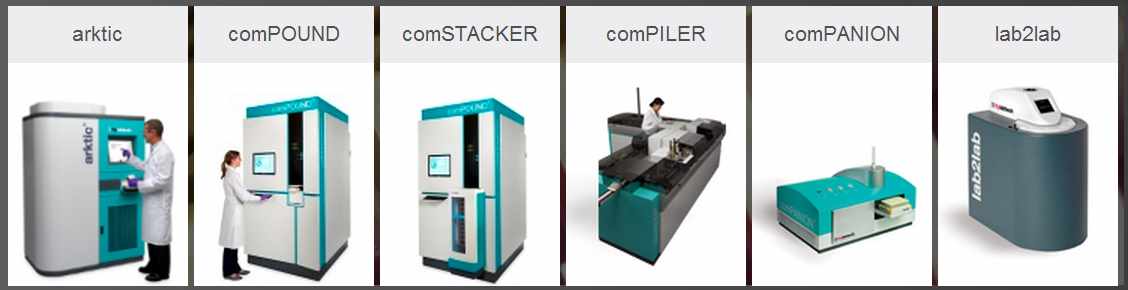

TTP Labtech' s sample management portfolio consists of a
range of innovative products and peripherals designed to store, transport and
process your samples.
TTP LabTech公司的樣品管理的產品組合包括一系列設計用來儲存，運輸和處理您的樣品的創新產品和週邊。
arktic: low cost, low footprint, automated biobanking
.成本低, 體積小, 自動化的生物樣品資料庫
.comPOUND: efficient biobanking for high quality antibody
storage
用於高品質抗體儲存的高效生物樣品資料庫
.comPOUND: A modular, integrated storage solution to
facilitate the biobanking workflow
一個達成生物樣品資料庫的工作流程的模組化, 整合的儲存解決方案
.lab2lab: a virtual instrument for every laboratory
用於每個實驗室的虛擬儀器
Storage and Processing 存儲和處理
Our instrumentation is ideally suited to the storage and
processing of biological and chemical reagents, including solubilised chemical
compounds in DMSO and water, purified DNA, RT-PCR primers, proteins and
antibodies.
我們的儀器非常適合於生物和化學試劑的儲存和處理, 包括在DMSO和水中溶解的化學物質, 純化的DNA,
RT-PCR的引子, 蛋白質和抗體.
Robust Technology 強大的技術
At the heart of these products is TTP Labtech' s unique
pneumatic technology, using a cushion of compressed air or nitrogen and a system
of flexible tubes to transport microtubes.
This makes our instrumentation extremely reliable and
robust compared to traditional systems that use robots.
TTP Labtech' s modular stores, comPOUND® and arktic®,
minimise the use of moving parts that can malfunction in refrigerated conditions
and our proven technology ensures that users will have maximum uptime and
availability of their systems.
在這些產品的心臟是TTP LabTech公司獨特的氣動技術, 使用壓縮空氣或氮氣的緩沖墊和彈性來輸送微試管.
這使得我們的儀器比起使用機器手臂的傳統系統是非常可靠和強大的.
TTP LabTech公司的模組化存儲主體, comPOUND®和arktic®,
將在冷藏條件下可發生故障移動部件的使用最少量化. 我們的成熟技術確保用戶擁有其系統的最大正常運行時間和可用性.

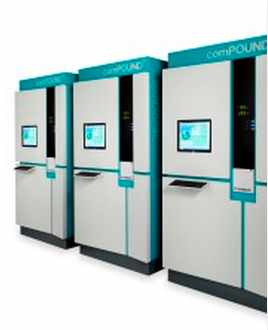

Modularity 模組化
Modularity is a key benefit of TTP Labtech' s sample
management systems.
This provides flexibility and enables the storage
capacity to expand in response to your storage needs.
As your library grows, throughput actually increases!
Each individual module has an independent cherry-picking
facility, which means that if other modules are temporarily unavailable (e.g.
whilst being serviced), the remainder of the library is still available.
Moreover, if laboratory requirements change then
relocation of the system is straightforward.
模組化是 TTP LabTech公司的樣品管理系統的一個關鍵優勢.
這提供了靈活性, 並且使得存儲容量擴大以回應您的儲存需求.
當您的儲存庫的成長了, 流通量實際上也增加了！
每個單獨的模組都有獨立的櫻桃式採摘的設施, 這表示說, 如果其他模組暫時不可用(例如, 正在被服務),
儲存庫的剩餘部分仍然是可用的. 而且, 如果實驗室需求改變了, 那麼系統重新設置位置是很直接的.
Sample Transport 樣品運送
TTP Labtech' s lab2lab laboratory management system
provides flexible, microtube transportation and scheduling between laboratories
or systems.
It can be used for managing samples from the lab bench
direct to analytical equipment for analysis, or for providing lab management for
enhanced compound QC.
TTP LabTech公司的 lab2lab 實驗室管理系統提供了靈活的微試管輸送和實驗室或系統之間的調度.
它可以用來管理從實驗室出來, 要用於分析分析設備的樣品, 或者為了增強化合物的QC而提供的實驗室管理.

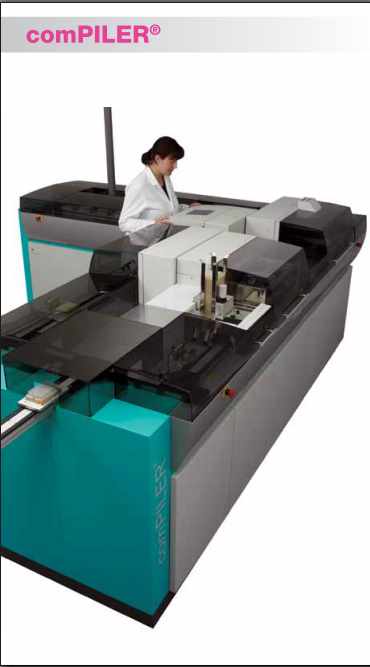

Sample Processing 樣品處理

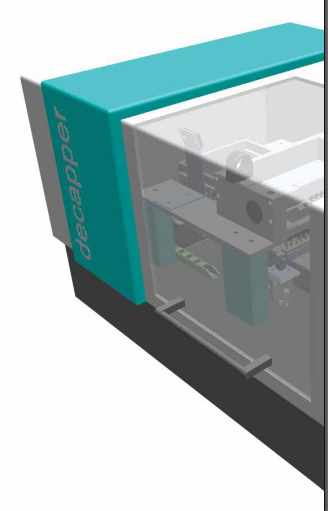

TTP Labtech' s comPILER provides automates processing
from storage to assay plate creation, providing arraying, thawing, centrifuging,
decapping, recapping and return to storage, plus the interface to a liquid
handler for reformatting.
TTP LabTech公司的 comPILER 提供了從存儲位置到分析微孔盤建立的自動的程序, 提供了排列,
解凍, 離心, 脫蓋, 和封蓋, 及返回到存儲位置, 再加上接到用來重新格式化的液體處理器的界面.

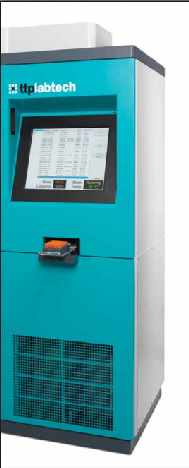

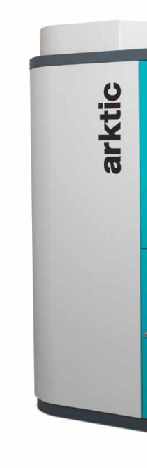

arktic
arktic for automated -80°C storage ( arktic 自動化-80°C儲存)
http://ttplabtech.com/sample-management/arktic/
arktic is TTP Labtech' s new modular store, providing a
low footprint, high capacity solution to -80°C biobanking.
It offers fast automated cherry-picking of individual
samples.
Using TTP Labtech' s proven pneumatic transport
technology, arktic gives you unrivalled robustness and reliability for all your
-80°C storage requirements.
TTP Labtech' s arktic offers you the quality and
robustness of its comPOUND ® sample store, but now at -80°C.
arktic 是 TTP LabTech 公司的新的模組化存儲設備, 提供一個-80℃ 生物樣品資料庫存的體積小,
高容量的解決方案.
它提供了快速自動化的個別樣品的櫻桃式採摘.
使用TTP LabTech公司成熟的氣動輸送技術, arktic為您所有的-80°C的存儲需求,
提供無與倫比的耐用度和可靠性.
|
arktic is TTP Labtech' s new modular store, providing a
low footprint, high capacity solution to -80°C biobanking.
It offers fast automated cherry-picking of individual
samples.
Using TTP Labtech' s proven pneumatic transport
technology, arktic gives you unrivalled robustness and reliability for all your
-80°C storage requirements.
TTP Labtech' s arktic offers you the quality and
robustness of its comPOUND ® sample store, but now at -80°C.
arktic 是 TTP LabTech 公司的新的模組化存儲設備, 提供一個-80℃ 生物樣品資料庫存的體積小,
高容量的解決方案.
它提供了快速自動化的個別樣品的櫻桃式採摘.
使用TTP LabTech公司成熟的氣動輸送技術, arktic為您所有的-80°C的存儲需求,
提供無與倫比的耐用度和可靠性. |
|

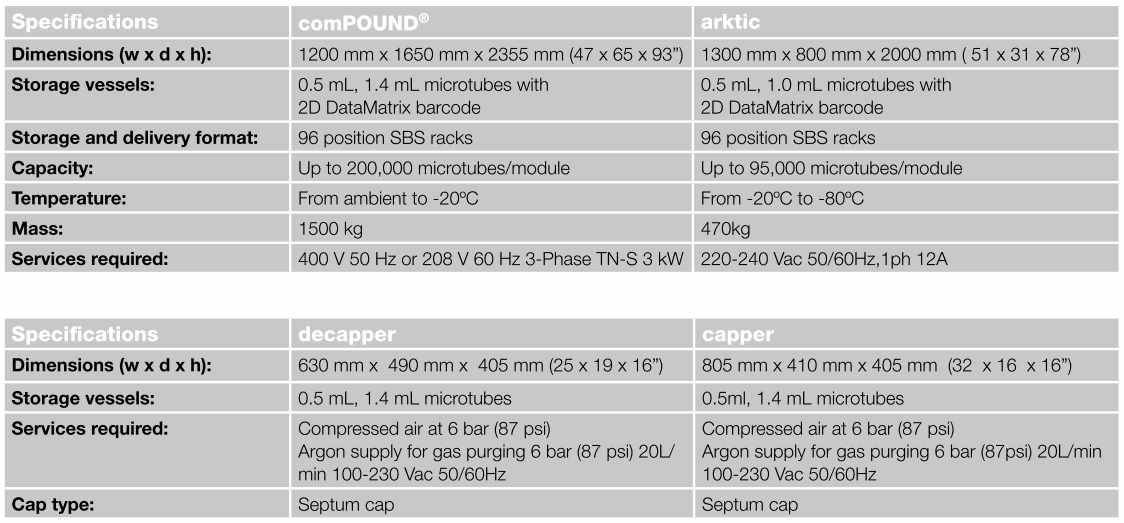

arktic offers you 提供您
.Outstanding high density storage: up to 95,000(0.5 mL)
or 60,000 (1.0 mL) samples per module
.優秀的高密度存儲：高達95,000(0.5毫升)或60,000(1.0毫升)樣品, 每模組.
.Ultra-low temperatures: samples are kept at -80°C
until they are ready to be delivered
.超低溫：樣品被保持在 -80°C, 直到他們準備被輸送
|

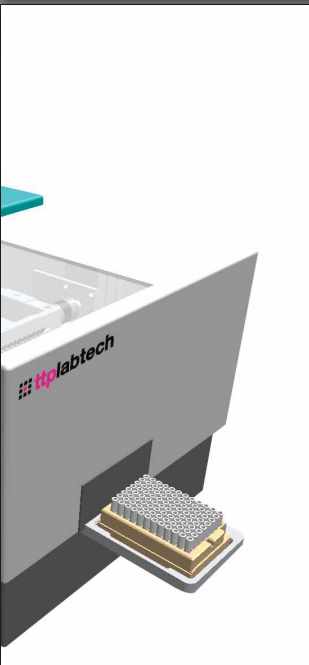

.Automated sample retrieval: pre-sorted racks of
up to 96 tubes can be dispensed in under 3 minutes. Individual microtubes can be
cherry-picked and delivered from store within 60 seconds
.自動樣品提取：高達96的預排序試管架可以在 3分鐘內釋放. 個別的微試管在60秒內,
可以從儲存庫作櫻桃式採摘及輸送.
.Sample integrity: samples are stored in dry air
or nitrogen in a hermetically sealed environment
.樣品的完整性：樣品儲存在乾燥的空氣或氮氣的密封環境
.Secure sample tracking: 2D bar-coded microtubes
and easy to use software ensure easy sample identification and tracking
.安全的樣品追踪：有二維條碼的微試管和易於使用的軟體, 確保樣品易於辨識和追踪
.Small footprint: measuring just 0.8 x 1.3 m,
arktic fits neatly into an bench sized space in your laboratory .
體積小：尺寸僅為0.8×1.3 M, arktic可以整齊地安裝到您的實驗室板凳大小的空間
.Expandability: modular system enabling easy
expansion as your sample repository grows .
可擴展性：當您的樣品庫成長時, 模組化系統使能容易擴張
.Flexibility: self-contained units can be sited
anywhere and easily relocated as your storage requirements change.
.靈活性: 獨立內含的單位可放在任何位置, 且在您的存儲需求變化時, 可輕鬆地重新定位.
.Outstanding high density storage: up to 95,000(0.5 mL)
or 60,000 (1.0 mL) samples per module
.優秀的高密度存儲：高達95,000(0.5毫升)或60,000(1.0毫升)樣品, 每模組.
.Ultra-low temperatures: samples are kept at -80°C
until they are ready to be delivered
.超低溫：樣品被保持在 -80°C, 直到他們準備被輸送
.Automated sample retrieval: pre-sorted racks of
up to 96 tubes can be dispensed in under 3 minutes. Individual microtubes can be
cherry-picked and delivered from store within 60 seconds
.自動樣品提取：高達96的預排序試管架可以在 3分鐘內釋放. 個別的微試管在60秒內,
可以從儲存庫作櫻桃式採摘及輸送.
.Sample integrity: samples are stored in dry air
or nitrogen in a hermetically sealed environment
.樣品的完整性：樣品儲存在乾燥的空氣或氮氣的密封環境
.Secure sample tracking: 2D bar-coded microtubes
and easy to use software ensure easy sample identification and tracking
.安全的樣品追踪：有二維條碼的微試管和易於使用的軟體, 確保樣品易於辨識和追踪
.Small footprint: measuring just 0.8 x 1.3 m,
arktic fits neatly into an bench sized space in your laboratory .
體積小：尺寸僅為0.8×1.3 M, arktic可以整齊地安裝到您的實驗室板凳大小的空間
.Expandability: modular system enabling easy
expansion as your sample repository grows .
可擴展性：當您的樣品庫成長時, 模組化系統使能容易擴張
.Flexibility: self-contained units can be sited
anywhere and easily relocated as your storage requirements change.
.靈活性: 獨立內含的單位可放在任何位置, 且在您的存儲需求變化時, 可輕鬆地重新定位.
|
|
|

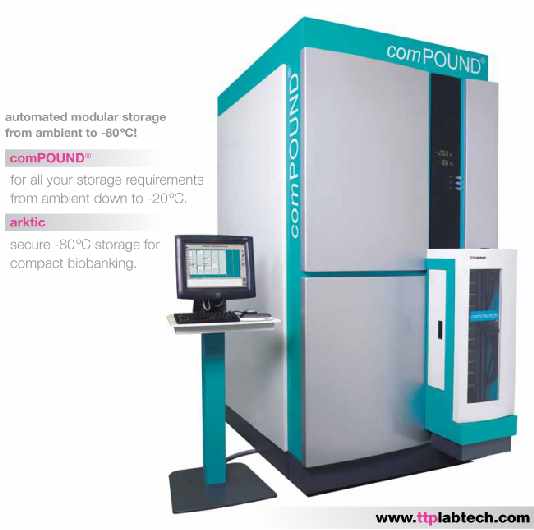

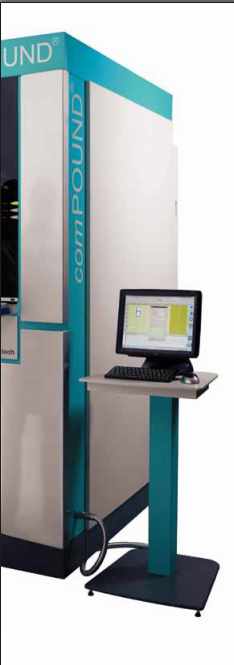

comPOUND®: modular sample storage
comPOUND®：模組化樣品保存
http://ttplabtech.com/sample-management/compound/
Are you screening from your biological sample or compound
library?
Do you need rapid access to a range of library subsets
from your sample storage system?
Do you want to minimise sample degradation as a result of
repeated freeze/thaw cycles?
您要從您的生物樣品或化合物儲存庫作篩選？
您需要從您的樣品存儲系統快速存取儲存庫的一個範圍的子集合？
您要將重複冷凍/解凍循環造成的樣品降解的結果減到最少 ?
|
TTP Labtech' s comPOUND sample storage system gives you the ability to:
. select any library subset quickly to meet the needs of your screening
department
.快速選擇儲存庫的任何一個子集合以滿足您的篩選部門
. reduce potential damage to library stocks by only cherry-picking the samples
you need
.只有用櫻桃式採摘您需要的樣品以減少儲存庫庫存的潛在的損害

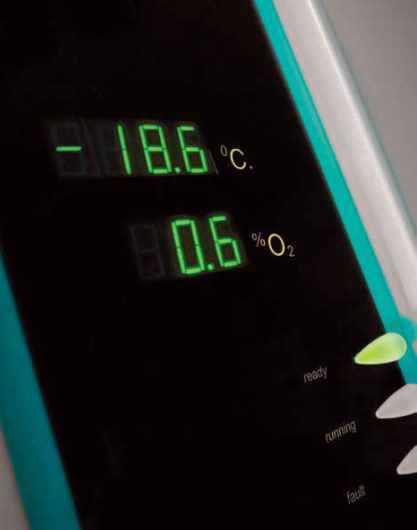

. ensure sample integrity with temperature controlled, dry, inert, hermetically
sealed environment . .以控制溫度, 乾燥, 惰性, 密封的環境確保樣品的完整性
.ensure throughput grows with your library by processing samples in parallel
.以樣品平行處理確保儲存庫流通量的增長
. easily expand your sample storage capability
.輕鬆擴展您的樣品的存儲能力
. Additional modules can be integrated in response to growing library size.
.額外的模組可以被整合, 以回應日益增長的儲存庫大小.
|
TTP LabTech公司的 comPOUND 樣品的存儲系統使您能夠：
|
TTP Labtech' s comPOUND modular sample store comprises a high-density storage
unit and an additional suite of specialised delivery and processing modules to
enable easy integration into any compound management or screening system.
You can minimise your initial investment in capital equipment, yet still grow
your library and your throughput when required.
TTP LabTech公司的 comPOUND 模組化樣品儲存系統, 由一個包括高密度存儲單元和額外的一套專門的遞送和處理模組組成,
使可以容易整合到任何化合物樣品管理或篩選系統.
您可以最小化您的資本設備的初始投資, 而在需要時, 仍然能增加您的儲存庫及和您的流通量.
|
related products 相關產品
related app notes 相關應用筆記
comPOUND: provides efficient biobanking for high quality antibody storage - case
study with Abcam
comPOUND: 為高品質的抗體的儲存提供高效生物樣品資料庫 - 與Abcam公司的案例研究
TTP Labtech' s comPOUND biobanking storage modules are successfully employed by
Abcam, a worldwide supplier of high quality antibodies, proteins, peptides,
lysates and assay kits.
Abcam公司成功地採用 TTP LABTECH的comPOUND生物庫存儲模組. Abcam公司是以家高品質的抗體, 蛋白質, 肽,
裂解物和檢測試劑套組的全球供應商.
biobanking: TTP Labtech's biological sample storage solutions
生物樣品資料庫：TTP LabTech公司的生物樣品的儲存解決方案
TTP Labtech' s instruments can either stand as single self-contained modules or
as part of a larger, linked library with higher throughputs.
LabTech公司的儀器可以擔負個自使用的模組或作為更大被鏈接的, 具有更高通量的儲存庫的一部分.
comPOUND and arktic can be located almost anywhere as they only require a dry
compressed air or nitrogen supply and connect to a standard electricity supply.
comPOUND 和arktic可以放在幾乎是任何地方, 因為它們只需要一個乾燥的壓縮空氣或氮氣供應, 並連接到一個標準的電力供應.
related videos 相關影片
related brochures 相關宣傳冊:
sample
management 樣品管理
related posters 相關海報
arktic: low cost, low footprint, automated biobanking
comPOUND: efficient biobanking for high quality antibody storage
comPOUND: A modular, integrated storage solution to facilitate the biobanking
workflow
lab2lab: a virtual instrument for every laboratory

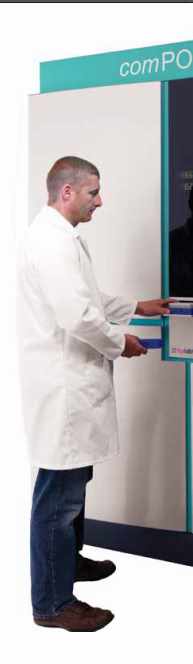

comPOUND ® : fast, flexible and
expandable sample storage
快速, 靈活, 可擴展的樣品儲存
comPOUND ® is a compact, modular, high-density, hermetically-sealed microtube
store providing secure, high-speed cherry-picking and delivery of sample tubes.
是一款緊湊型, 模組化, 高密度, 密閉微試管店提供安全, 高速櫻桃式採摘的和運送樣品管.
|
Reliability 可靠性
The unique comPOUND ® storage system is based on TTP Labtech' s robust and
reliable pneumatic technology.
獨特的comPOUND®儲存系統是基於TTP LabTech公司的強大 可靠的氣動技術.
Microtubes are stored and retrieved without robotic access to the sealed
environment, ensuring that it is not disturbed.
微試管的存儲和取得, 不用機器人進入密封環境中, 以確保它不被干擾.
This has the major benefit of minimising the number of moving parts in the
store' s environment, greatly improving reliability.
這具有在儲存的環境中, 最少化運動部件的數量的主要優點, 大大增進了可靠性.
Remote sample delivery 遠距離樣品輸送
TTP Labtech' s pneumatic technology also allows tubes to be delivered to the
laboratory from a remote store sited many metres away.
With the mechanical parts and the refrigeration system located outside the
temperature controlled environment, comPOUND is designed to have maximum uptime
and availability.
In the unlikely event of a fault, it can be rapidly diagnosed and repaired
(often remotely through VPN) without the need to open the storage unit and
compromise the internal temperature.
TTP LABTECH的氣動技術也允許試管被從好幾公尺遠的儲存位置輸送到實驗室.
經由機械部件與制冷系統放在溫度控制環境外面, comPOUND 被規劃設計成具有最大正常運行時間和可用性.
在出現故障的可能性時, 它能夠迅速地診斷和修復 (通常通過遠程VPN-virtual private network),
而不需要打開存儲單元及妥協於內部溫度的影響.
Sample integrity 樣品的完整性
Samples are stored in dry air or nitrogen in a hermetically sealed environment.
Each comPOUND module has its own individual cherry-picking facility and only the
microtube of interest is moved.
The cherry-picking capability works independently of the on-board refrigeration
system.
樣品儲存在乾燥空氣或氮氣在一個密封的環境.
每一個 comPOUND 模組都有自己單獨的櫻桃式採摘的設施, 且只有感興趣的微試管被移動.
櫻桃式採摘的能力以機板上的制冷系統獨立工作.
|
comPOUND ® provides a reliable, efficient and flexible storage solution for
biological samples and chemical compounds.
comPOUND®提供了一個可靠, 高效率的和靈活的生物樣品和化學化合物儲存解決方案.
|
key features 主要特點
.Reliability: the system is
based on well-proven and robust pneumatic technology
.可靠性：本系統是基於成熟驗證的和強大的氣動技術
.Modularity: each store is a
self-contained, temperature-controlled inert environment
.模組化：每個儲存是一個自行包含的(獨立的), 溫度控制的惰性環境
.Hight density: a maximum storage capacity per
module of 200,000(0.5 mL tubes), 100,000(1.4 mL tubes) or a mixture of the two
.高密度: 最大儲存容量為每模組200,000(0.5 mL微試管), 100,000(1.4 mL微試管)或二者的混合
.Scalability: additional modules can be
added and linked together in response to growing library size.
.可擴展性：增加的模組可以加入並連接在一起以回應儲存庫規模成長.
.Each module has its own independent
cherry-picking capability
.每個模組都有自己獨立的櫻桃式採摘能力.
.Speed: cherry-picking of microtubes is fast,
averaging one tube from 100,000 in 5 seconds
.速度：微試管的櫻桃式採摘的速度快, 從100,000挑出一管平均在5秒內
.Linking of additional modules increases sample throughput, as they
work independently in parallel delivering to a
common point
.鏈接增加的模組增加了樣品通量, 因為他們平行獨立地工作, 傳送到一個共同的點
.Flexibility: samples are stored at a user-defined
temperature between ambient and -20°C.
.靈活性：樣品被存儲在一個用戶定義的, 在室溫和-20℃之間的溫度.
.Microtubes can be retrieved in any user-specified format
ready for further processing
.微試管可以以任何用準備用於進一步處理的戶指定格式被存取
.Confidence: each microtube is uniquely 2-D
bar-coded enabling full sample traceability
.信心：每個微試管有唯一的2-D條形碼, 使能夠有全樣品的可追溯性
.Simple file-based interface allows integration into any
LIMS or database.
.簡單的檔案為基礎的介面允許整合到任何LIMS或資料庫.
|
comPILER ®
|
Need to make assay plates directly
from your microtube library?
需要從您的微試管儲存庫直接製作出檢測的微孔盤板？
comPILER ® uses our proven pneumatic technology to rapidly assemble
cherry-picked microtubes from comPOUND ® stores into racks for reformatting by a
liquid handling system of the user' s choice. comPILER ®使用我們經過驗證氣動技術, 迅速地組合從
comPOUND ®儲存庫櫻桃式採摘微試管到架子(微孔盤), 讓使用者經由選擇的液體處理系統重新格式化.
Microtubes are transported to comPILER which then thaws, centrifuges and decaps
the tubes, flushes them with argon and presents them to a third-party liquid
handling robot.
微試管被輸送到 comPILER, 然後解凍, 離心和打開管蓋, 用氬氣沖刷, 並且將它們呈現給第三方的液體處理機器.
When processing is complete, comPILER regasses, recaps and returns the
microtubes to the comPOUND store.
當處理完成後, comPILE 重新充氣, 蓋上管蓋, 並將該微試管返回 comPOUND 儲存庫.
comPILER can connect up to 12 comPOUND modules simultaneously, giving rapid
access to a library of 1.2 million samples.
comPILER可以同時連接多達12 個 comPOUND 模組, 提供1.2百萬個樣品的儲存庫的快速存取.
Parallel processing allows the system to retrieve, process and store over 20,000
microtubes in 8 hours.
並行處理允許系統在8小時內檢索取出, 處理和儲存超過20,000個微試管.
comPILER can work with any liquid handling system with an automation interface.
comPILER可以用一個自動化界面與任何液體處理系統工作.
benefits 幫助
.Localised micro environmental control ensures samples
are never exposed to the raw atmosphere, minimising sample degradation
.區域化的微環境控制, 確保樣品從不暴露於一般大氣中, 最少化樣品的降解
.Walk-away operation
.輕快容易的操作
.comPILER' s modularity allows each processing station to operate independently
and enables the system to be configured to suit each user's application
.comPILER的模組化設計允許每個處理站獨立的運作, 使系統配置適應每個用戶的應用.
.Offers true "Tube-To-Plate" processing.
.提供真正的"微試管到微孔盤"的程序.
|
comSTACKER
Walk-away loading and unloading of your store without a
robot.
不用到一個機器, 輕快容易地載入或退出您的儲存庫.
comSTACKER is a flexible add-on unit for comPOUND ® storage modules.
It enables the unattended automatic removal and replacement of tubes from
comPOUND into racks within the unit.
comSTACKER是comPOUND®儲存模組的一個靈活的家附加單元.
它使得能夠不用人工看管地從comPOUND自動移除和更換微試管到單元內的微孔盤.
comSTACKER has a removable cassette that holds up to 10 standard SBS racks and
an adaptor plate allowing both 0.5 mL and 1.4 mL microtubes to be retrieved and
stored.
Racks do not need to be full to capacity and each cassette slot does not need to
be filled, as ' absent' racks are simply skipped over.
comSTACKER有一個可拆卸的卡匣, 最多可容納10個標準的SBS微孔架和一個轉接盤, 允許0.5毫升和1.4毫升兩種微量管的取用及儲存.
微孔架不需要滿到容量, 且每個卡匣插槽並不需要被填入, 因為 "缺席" 的微孔架僅僅被跳過.
comSTACKER can be easily retrofitted to any comPOUND store via two fixing
brackets to the front door and the unit can be readily removed for maintenance
or if access is required.
comSTACKER 可以經由兩個固定到前門的支架, 加裝到任何comPOUND 儲存庫, 而且, 進行維護或有需要取用時, 這個單元可以很容易地移除.
comSTACKER can work in harmony with comPANION and comPILER if required.
如果需要 comSTACKER 可以和comPANION 及 comPILER 和諧地工作.
comPANION
Remote rack handling and delivery.
遠程微孔架處理和傳送
comPANION is a remote device that receives microtubes from comPOUND modules and
arrays them into SBS footprint racks.
It can also return racked tubes to comPOUND modules.
comPANION是一個 接收來自 comPOUND 模組的微試管並且將它們排列到SBS容積的微孔架, 的遠端設備.
它也可以將微孔架上的微試管返回到 comPOUND 模組.
Microtubes are transported using the pneumatic technology that is central to the
comPOUND sample store.
微試管的輸送是使用氣動技術, 它是 comPOUND 樣品儲存庫的核心.
This means that each comPANION unit can be remotely located in different
laboratories, or on different floors, and can connect comPOUND storage modules
in parallel so that tubes in different modules can be accessed simultaneously.
這表示每一個 comPANION 單元 可以遠距離地分佈在不同的實驗室, 或在不同的樓層, 並且可以平行地連接到各 comPOUND 存儲模組,
以便可以同時存取不同的模組.
comMOTION
An easy interface for further
automation.
一個用於進一步自動化的簡單界面.
comMOTION acts as an interface to a variety of robotic rack handlers for
integrating comPOUND into a fully automated screening system.
comMOTION 是各種機器化的微孔架處理器要整合到 comPOUND 成為完全自動化的篩選系統, 的一個界面.
It comprises a stand-alone comPOUND module, a comPANION arraying station and a
rack handling system, managing racks between comPANION and rack hotels.
它包括一個獨立的 comPOUND 模組, 一個comPANION 排列工作站, 以及一個微孔架處理器系統, 管理
comPANION和微孔架旅運站之間的微孔架.
comMOTION is compatible with most commonly available laboratory robots (such as
the Hamilton SWAP and Twister II) and many liquid handlers.
comMOTION 相容於最常用的實驗室機器設備(如Hamilton SWAP and Twister II)和許多液體處理器.
decapper and capper
脫蓋機和封蓋機
Are you still manually decapping and capping your tubes?
您還在手動脫蓋和封蓋您的微試管？
|
Although your laboratory may have automated capabilities for liquid handling and
sample storage, the process of microtube decapping and capping often involves
manual intervention for cap disposal and inspection.
雖然您的實驗室可能已經有自動化液體處理和樣品儲存的能力, 微試管脫蓋和封蓋的過程經常涉及人工介入蓋子的丟棄和檢查.
decapper and capper are compact bench-top instruments that can be easily
incorporated into your automated tube handling applications, or can operate as
stand-alone instruments.
脫蓋機和封蓋機是可以很容易地納入您的自動化微試管處理的應用或也可以作為獨立操作儀器, 的結構緊湊的台式儀器.
|
|
Providing you with reliable unattended operation, these automated instruments
are suitable for high throughput screening workcells.
為您提供可靠的不用人工看管的操作, 這些自動化儀器適用於高通量篩選工作單元.
These two instruments are easily integrated into third-party workstations and
provide an important addition to TTP Labtech' s product portfolio, facilitating
automated sample transport in the modern laboratory.
這兩種儀器都易於整合到第三方的工作站, 並且提供 TTP LabTech的產品組合一個重要的增加, 便於現代化實驗室的自動樣品運輸.
TTP Labtech' s automated decapper and capper offer you:
TTP LabTech公司的自動脫蓋機和封蓋機為您提供：
.Fully automated decapping, disposal, purging and cap
placement
.全自動脫蓋, 丟棄, 吹掃和封蓋
.Decapping or capping of full or partially filled racks of 96 tubes, processing
within 90 seconds .
90秒內處理全部或部分填充的96微管微管架的脫蓋和封蓋
.100% inspection
.100％全檢
.Optional gas purging with an inert gas such as argon for sample integrity
.為了樣品的完整性, 可選用惰性氣體如氬氣的氣體作吹掃
.SiLA interface
.SiLA 介面 (Standardization in Lab Automation)
.Compatibility with a wide range of commercially available 0.5 and 1.4 mL septum
seal microtubes
.對於商業化的0.5〜1.4毫升隔膜密封微試管, 具有很廣的範圍的相容能力.
.Zero cross contamination between samples
.零樣品間的交叉污染
.Compact footprint.
.緊湊的容積.
|
Specifications 規格
|
